Ultimate Shingle Conveyor





Ultimate Shingle Conveyor Brochure

Key Features



Ultimate Shingle Conveyor Post

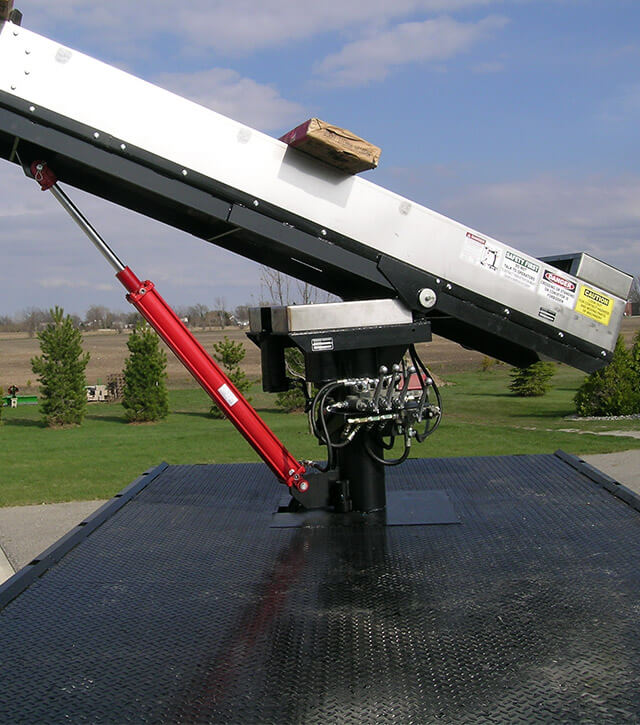

The Post

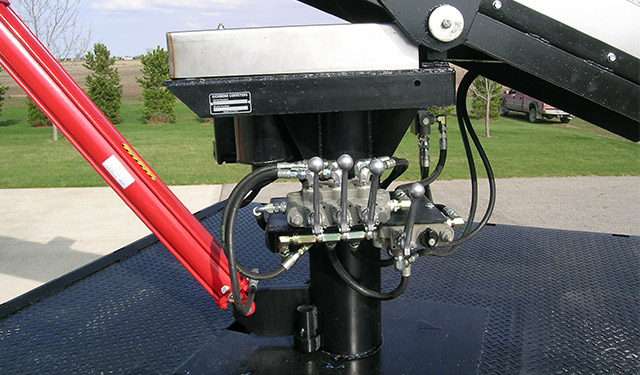

  • Post valve controls are conveniently located for user friendly operation
  • Post rotational components (motor sprockets and chain) are above the truck bed and under a stainless steel cover
  • Richmond design includes internal heavy duty bearings for telescoping operation
  • Post is mounted flush to the truck bed (no hazardous obstructive mounting plate)

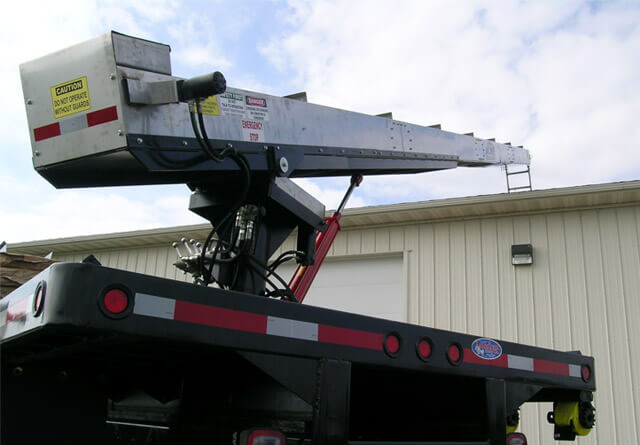

Designed for the roofing distributor


  • Reinforced back panel
  • Additional center slide
  • Reinforced paddles for increased durability
  • All sections are made of heavy gauge stainless steel

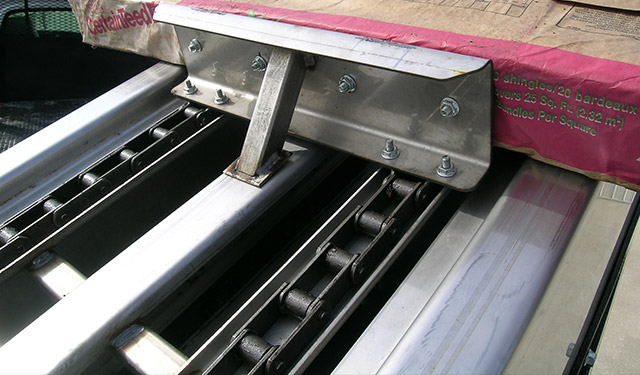

  • Utilizes a CA550 roller chain for long life and less maintenance
  • Heavy duty drive shafts
  • Heavy duty post and telescoping components
Ultimate Shingle Conveyor Post Ultimate Shingle Conveyor Roller Chain
Ultimate Shingle Conveyor Components and Bearings

Components and Bearings


All components and bearings are heavy duty and greasable for durability and long life

Ultimate Shingle Conveyor Stabilizers

Stabilizers


Vertical lift stabilizer with an adjustable swivel foot pad

Lengths 30' 32' 34' 36' 38' 40'
Weights 2861 lbs 2900 lbs 2939 lbs 2978 lbs 3017 lbs 3050 lbs
Chain Speed **
Paddle Spacing 58"
Frame Structure Stainless Steel
Shingle Delivery System CA-550 Chain and Stainless Steel Paddle
Remote Controlled Operations Available Option
Post Hydraulic Telescoping
Rotation 360°
Cab to Axle (CA)
Cab to Trunnion (CT)
See the CA / CT tab
Load and Clearance See the CA / CT tab
Truckbed Length 20' 22' 24' 26' 28' 30'
Conveyor Lengths 30'
32'
34' 36' 38' 40' 40'
Cab to Axle (CA) / Cab to Trunion (CT)
Minimum
Recommended
Maximum

110"
116"
128"

132"
140"
152"

157"
165"
177"

179"
187"
199"

206"
214"
226"

230"
240"
252"

CA/CT Diagram
Conveyor Length 30' thru 40'
Minimum Load Height (MLH) **
Maximum Bed Clearance (MC) **
Maximum Conveyor Angle (MA) 55°
Center of Post to Back Edge of Tail Section (CP / BE) 52.25"
Post Rotation 360°

Load and Clearance Diagram
